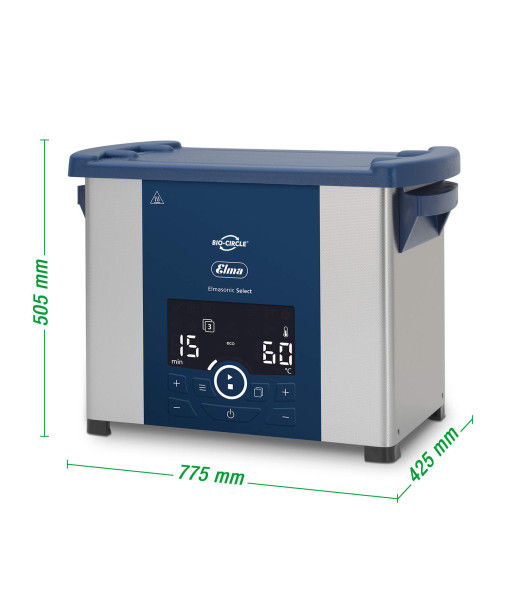

ULTRASONIC DEVICE - ELMASONIC SELECT

ULTRASONIC DEVICE - ELMASONIC SELECT

Effectively clean parts with rigid surfaces and complex geometries via ultrasonic waves. Even persistent contaminates such as dried oil and grease, paint and varnish or rust can be removed with the appropriate cleaner - down to the smallest bores, material pores and openings.



Available in 8 different device sizes (capacity 2.7 l to 89 l).

  • PRODUCT INFO

    Ultrasonic cleaning devices from the Elmasonic Select series are powerful and individual. Due to the ultrasonic frequency of 37 kHz, 5 ultrasonic modes, the possibility to save up to 4 individual cleaning programs, a heater and with a tank volume of 3 to 90 liters, Elmasonic Select devices are versatile.

    Elmasonic Select devices are application-specific with cleaning liquids and practical accessories such as baskets, noise protection boxes, holders and much more.

    • 37 kHz ultrasonic frequency
    • 5 ultrasonic modes
    • 4 individual cleaning programs
    • Heating
    • Tub volume from 3 to 90 liters (from Select 60 with drain)
  • TECH SPEC

    Technical specification

    Pollution type: Resin, wax, paint, polishing pastes, dust, abrasion, oil, grease
    Quantity of parts: Individual parts, small series, small quantities
    Component geometry: Whole components (without dismantling), scooping parts, parts with narrow gaps (<1 mm), uncomplicated parts
    Scope of delivery: Ultrasonic device, cover, mains cable, hose nozzle for drain (except for Elmsonic 30 & 40), operating instructions
    working height: 40 - 220mm
    Min. operating temperature: 5°C
    Operating temperature max.: 40°C
    Capacity minimum: 1.6L
    Filling quantity maximum: 89L
    Optimal filling quantity: 1.6 - 63.7L
    Depth: 170 - 595mm
    Material tank: stainless steel
    Power consumption approx.: 320 - 2960W
    Heating: 200 - 2000W
    Total weight of the cleaning system without tank filling: 3.6 - 112.5 kg
    Frequency: 50/60Hz
    Tension: 220-240V / 115-120V
  • TYPE OF CONTAMINATION

    • Resin
    • Wax
    • Paint
    • Polishing pastes
    • Dust
    • Abrasion
    • Oil
    • Grease
  • INDUSTRIES & USE

    Cross-industry application - predominately maintenance & equipment refurbishment e.g. of

    • Carburetors, filters, shafts, valves, pumps,
    • Engines and plant parts of any kind,
    • Removal of paint from small parts, for derusting
  • RECOMMENDED CLEANING LIQUIDS

    Ultrasonic cleaning liquids
